Autodesk RVT_ELEC_01101 Dumps Updated Dec 01, 2025 WIith 65 Questions [Q24-Q48]

NEW QUESTION 24
Exhibit.

An electrical designer creates a panel schedule. Which Electrical Equipment parameter defines the default name of the panel schedule view?

Type Mark

Mark

Description

Panel Name

In Autodesk Revit for Electrical Design, when a designer creates a panel schedule, the default name of the panel schedule view is automatically derived from the Panel Name parameter of the Electrical Equipment family to which the circuits are assigned.
According to the Revit MEP User’s Guide (Electrical Systems section: Panel Schedules):
“When you create a panel schedule, Revit uses the Panel Name parameter of the electrical equipment to define the default schedule name. The Panel Name identifies the distribution panel that supplies the circuits. This name appears in both the Panel Schedule view and in circuit information tags.”
– Revit MEP User’s Guide, Chapter 17: Electrical Systems – Panel Schedules The Panel Name is a critical electrical equipment instance parameter located in the Electrical – Circuiting group of properties.
It appears in both the Electrical Equipment Properties Palette and the Panel Schedule Header. This name can later be modified manually, but by default, it directly controls the naming convention of the generated schedule.
In contrast:
A . Type Mark – identifies types within the family for documentation and does not control schedule naming.
B . Mark – a unique instance identifier often used for tags, but not for panel schedule view naming.
C . Description – provides descriptive text only for documentation or labeling.
D . Panel Name – correctly defines and drives the default schedule view name for panels and circuits.
When a panel (electrical equipment) is placed in the model and circuits are connected, Revit generates a new Panel Schedule View automatically titled using the value entered in the Panel Name field (e.g., “Panel LP-1”). This ensures consistency between the modeled equipment and the schedule documentation.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User’s Guide (2011), Chapter 17: Electrical Systems – Creating and Editing Panel Schedules:
“The name of the panel schedule view is determined by the Panel Name property of the electrical equipment.” Revit MEP Electrical Design Training Manual, Module: Electrical Equipment and Panel Schedules:
“Panel Name is used by Revit as the default identifier for any panel schedule view created for that equipment.”

NEW QUESTION 25
Elements are added to a design option. The electrical designer needs an additional design option in the option set. All of the same elements are needed in both design options Which two methods will duplicate the element for the new design option? (Select two.)

Open two views side by side and drag and drop from one view to another.

Open the new design option and pick Reveal Hidden to select the items to copy.

In the Design Options dialog, pick the original design option and select Duplicate.

Use Copy to Clipboard and Paste > Aligned to Current View in the new design option.

Select the items and use Add to Set.

In Autodesk Revit, Design Options are used to explore multiple design alternatives within the same project environment. This feature is often employed by electrical designers to model different lighting layouts, circuiting approaches, or equipment placements without duplicating the entire project.
When an additional design option is created within the same option set, and the designer needs to include all the same elements that already exist in another design option, Revit offers two effective ways to duplicate these elements while preserving their type, parameters, and host relationships.
According to the Autodesk Revit MEP User’s Guide (Chapter: Working with Design Options), it clearly describes:
“To create a copy of an existing design option within an option set, open the Design Options dialog box, select the desired option, and click Duplicate. This creates a new option containing identical elements and maintains their relationships and constraints.” This confirms Option C as correct because duplicating an option from the Design Options dialog automatically replicates all its elements into the new design option within the same option set.
Furthermore, the guide continues:
“Alternatively, when working with a specific design option view, you can use the Copy to Clipboard and Paste Aligned > Aligned to Current View commands to duplicate selected elements into another active design option. These elements are placed in the same location and remain associated with the new design option.” This validates Option D as the second correct method, allowing manual duplication of elements between options while keeping spatial alignment intact.
Other options listed are incorrect for the following reasons:
A (Drag and Drop) is not supported between design options; it only works between views in the same option.
B (Reveal Hidden) only displays hidden elements; it doesn’t expose design option geometry for copying.
E (Add to Set) transfers elements into the same design option set, not between individual design options.
Therefore, the two valid and Autodesk-confirmed methods to duplicate all elements between design options are:
C). Duplicate from Design Options dialog, and D. Copy/Paste Aligned to Current View.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 13: Working with Design Options, pp. 364-367.
Autodesk Revit Architecture 2020 Help, “Duplicating Design Options and Copying Elements Between Options.” Smithsonian Facilities Revit Template User’s Guide (2021), Section 6.3.2: Managing Design Options in Coordination Views.

NEW QUESTION 26
Refer to exhibit.
(The image is presented in Imperial units: 1 In = 25 mm (Metric units rounded).)

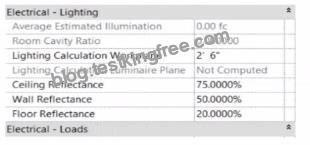

In the space properties for the space, the Lighting Calculation Luminaire Plane is Not Computed. What is causing this issue?

The lighting fixtures are missing an IES file.

No lights are placed in the space.

The lights in this space are not circuited.

Lights are at different elevations in the same space.

NEW QUESTION 27

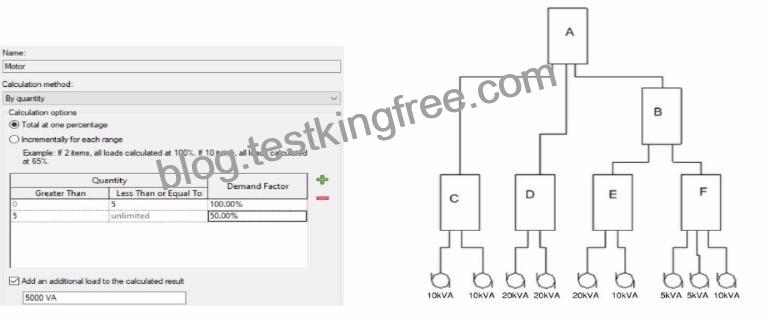

Refer to exhibits.

What is the demand load on Panel B?

65kVA

55kVA

30kVA

40kVA

NEW QUESTION 28

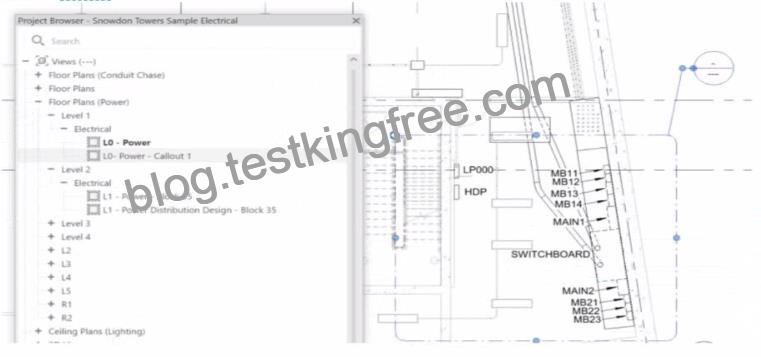

Refer to exhibit.

Select the callout and choose a detail view under Reference Other View.

Select the callout and change its type from the Type Selector.

Delete the existing callout and create a new one with the correct type.

Open the callout view from the Project Browser and change its type.

In Autodesk Revit, when an electrical designer creates a callout view, the software automatically generates a new dependent or independent view based on the selected callout type. However, if a callout is accidentally linked to the wrong or redundant view, the designer can easily reassign it to another existing view without recreating the callout. This can be done using the Reference Other View property in the Properties palette.
According to the Revit MEP User’s Guide (Chapter 47 “Views and Callouts”):
“To link a callout to an existing view rather than creating a new one, select the callout, and under the properties for that element, use Reference Other View to specify the desired target view.” This means that when the designer selects the callout (in this case, shown as “L0 – Power – Callout 1” in the Project Browser), they can modify the Reference Other View setting from the Properties palette to point to a different, pre-existing detail view or callout view-for example, one showing an enlarged power distribution layout or switchboard detail.
This is the most efficient workflow because:
It avoids recreating or redrawing the callout (unlike Option C).
It preserves all annotation and sheet referencing data.
It ensures alignment and consistency across sheet references.
The Smithsonian Facilities Revit Template User’s Guide reinforces this standard Revit practice:
“When a view reference or callout is incorrectly associated, use the Reference Other View property to redirect the annotation to an existing detail or dependent view.” Why the Other Options Are Incorrect:
B . Change its type from the Type Selector: Callout types control annotation style (not the referenced view).
C . Delete and recreate: This is unnecessary and inefficient.
D . Open the callout view and change its type: Callout type cannot be changed directly once created; it’s controlled by view properties.
Therefore, the correct and Revit-recommended approach is Option A: Select the callout and choose a detail view under Reference Other View.
References:
Autodesk Revit MEP User’s Guide – Chapter 47 “Views and Callouts,” pp. 1092-1097 Smithsonian Facilities Revit Template User’s Guide – Section 2.8.1 “View Types and Templates,” pp. 29-31 Autodesk Revit Electrical Design Essentials – “Callouts, Detail Views, and Referencing Workflows”

NEW QUESTION 29
A project is almost at the end of design. The electrical designer needs to make sure electrical loads as reported by load summaries accurately reflect all modeled loads. How should a designer view a list of all modeled electrical connectors that are not connected to a circuit?

Use the command Check Circuits.

Review the System Browser.

Create a circuit schedule.

Use the command Show Disconnects.

NEW QUESTION 30

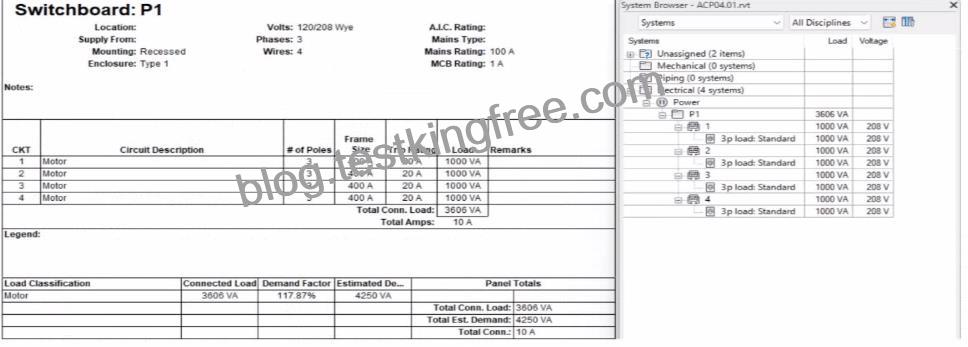

Refer to exhibit.

An electrical designer expects the total connected load on the switchboard to be 4000VA. but Revit Indicates a total connected load of 3606VA. What Is the cause of the discrepancy?

The connected loads are set to a different voltage than the switchboard.

The Motor demand factor is configured to adjust the connected load.

Load is connected through the switchboard’s feed through lugs.

Sum true load and reactive load is selected in Electrical Settings.

NEW QUESTION 31
Refer to exhibit.

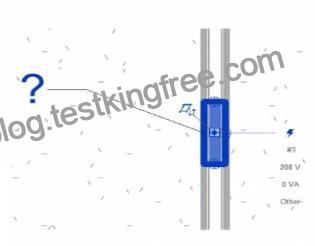

An electrical designer tries to place a generic annotation family in a data device family. The designer receives the error message as shown. What should the designer do?

Change the Detail Level to Coarse.

Edit the generic annotation family and set it to Shared.

Set the view to the Ref. Level.

Select the Maintain Annotation Orientation parameter checkbox

NEW QUESTION 32

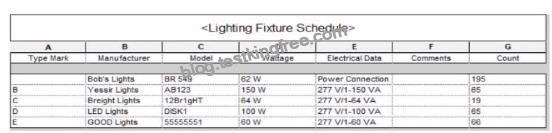

Refer to exhibit.

Which two actions were used to create this light fixture schedule? (Select two.)

Deselected Itemize every instance.

Filtered to only show lights that have a type mark value.

Added both electrical and switch system settings.

Sorted by type mark.

Sorted by instance and quantity.

NEW QUESTION 33
Refer to exhibit.

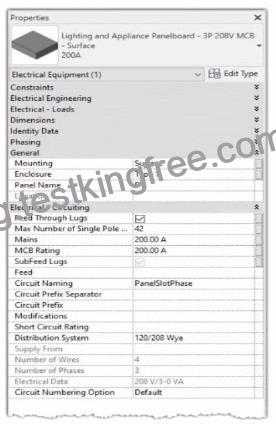

A panelboard has the following properties:

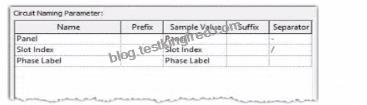

The Circuit Naming Scheme PanelSlolPhase. which defines the value of the Circuit Number parameter, is configured as follows:

In electrical settings. Phase Labels have not been modified from the default “A.” “B.” and “C- The Circuit Number lot a single-pole circuit in the panelboard’s first breaker position is———-(Enter the correct value into the field)

NEW QUESTION 34
Refer to exhibit.

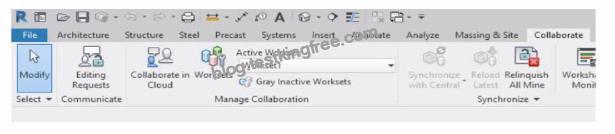

Why is Synchronize with Central disabled?
After enabling collaboration for a project, an electrical designer observes the ribbon.

The designer has unrelinquished elements.

The designer has unresolved editing requests.

The central model is unavailable or not found.

The designer is working in the central model.

NEW QUESTION 35

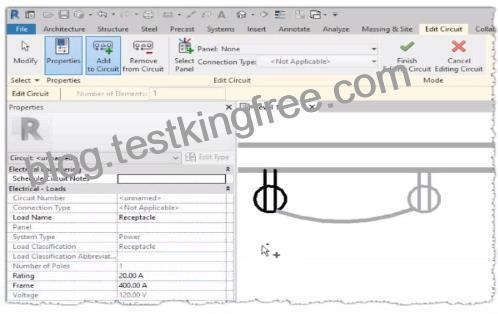

Refer to exhibit.

Why is one receptacle shown in full color (black) and one receptacle shown in halftone (gray)?

The circuit’s panelboard is not assigned.

The two receptacles are not on the some circuit.

The wire connecting the two receptacles is not property attached

The two receptacles have different load classifications.

NEW QUESTION 36

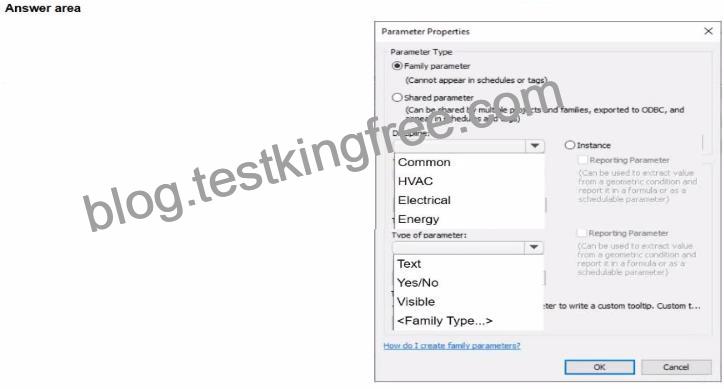

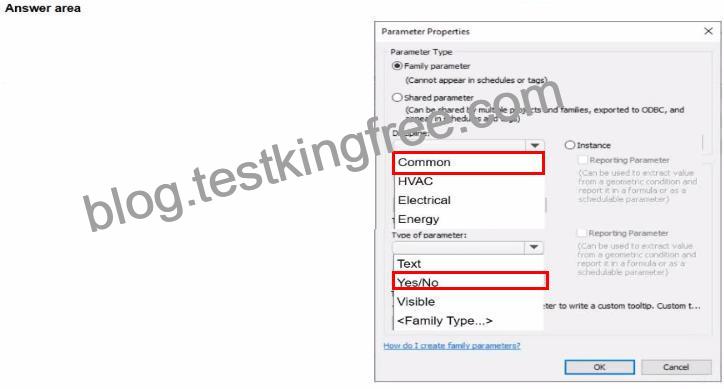

An electrical designer is creating a panelboard family. The electrical designer wants to create a family parameter to control the visibility of a clearance zone. In the Parameter Properties dialog, select the required Discipline and Type for the parameter.

NEW QUESTION 37

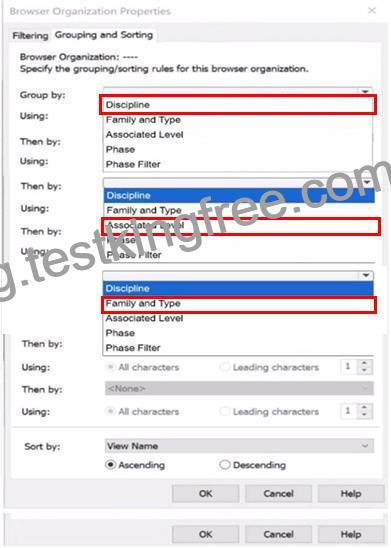

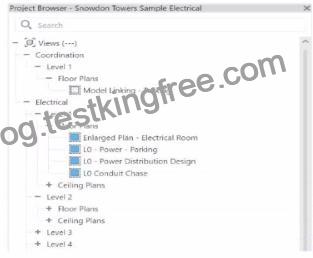

Refer to exhibit.

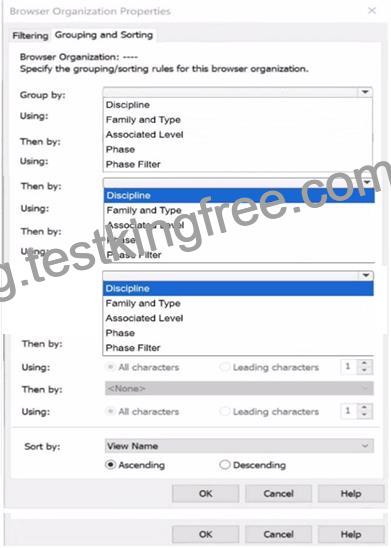

An electrical designer wants to organize the Protect Browser as shown in the exhibit. Select the correct options in order to achieve the desired organization. (Select three.)

NEW QUESTION 38
Refer to exhibit.

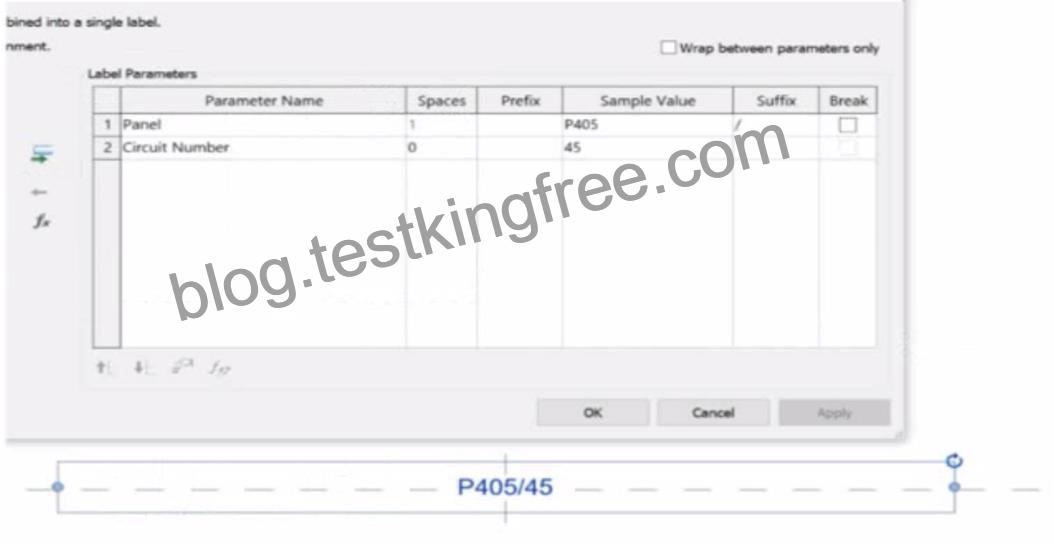

An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?

NEW QUESTION 39
An electrical designer is creating an electrical fixture family for a receptacle. The designer nests a generic annotation family that contains the receptacle symbol and a label What must be done in the electrical fixture family so that the label value can be changed in a project?

Create a label and use a formula to set it equal to the generic annotation label.

Associate the nested family’s parameter to a parameter in the electrical fixture family.

In the Visibility Settings for the nested generic annotation, select Label.

Enable Shared in the generic annotation family and re-load it into the fixture family.

NEW QUESTION 40
How can an arrowhead be added to a lag leader line?

Change the Leader Type to Free End.

Enable Leader Arrowhead in the instance properties.

Choose an arrow type for the Leader Arrowhead in the Type Properties.

Select the tag and enable Leader Line in the Properties palette

NEW QUESTION 41
An electrical designer needs to add spaces to a model displaying the architectural room name and number. What should the designer do before creating the spaces?

Select Room Bounding from the architectural link’s type properties.

Change the architectural model display settings to By Host View,

Use Transfer Project Standards to Import rooms from the architectural model.

Select Save Positions for the architectural links in the Manage Links dialog.

NEW QUESTION 42
Refer to exhibit.

In this linked architectural model, demolished walls are missing The electrical designer teams from the architect that the walls have been placed in a phase that does not exist in the host model.
Which steps should the designer lake to associate the architectural phases to their phases?

Open Manage Links > Manage Phases

Select the link > Edit Type > Phase Mapping

Select Phases > Graphic Overrides

Open Visibility Graphics > Revit Links > Display Settings

In Autodesk Revit, when demolished walls or other elements from a linked architectural model are missing in the host model, the issue typically lies in phase inconsistency between the host and linked models. The architectural model may include elements created or demolished in phases that do not exist or are mismatched in the electrical model (the host). To resolve this, Revit allows users to map phases between the host and linked models through the Phase Mapping tool in the link’s Type Properties dialog.
According to the Autodesk Revit MEP Electrical Design Guide (Linked Models Section, pp. 1282-1287), the official procedure is:
“You can manually set up a correspondence between phases in the host model and phases in the linked model. To do this, you set up a phase map in the properties of the linked model, and then apply the phase map in the host model.” (Revit MEP User’s Guide, Chapter 53 – Linked Models, p. 1282) The step-by-step process is precisely described in the Revit documentation as follows:
To map phases in the linked model:
In the drawing area of the host model, select the linked Revit model.
Click Modify | RVT Links tab ➤ Properties panel ➤ Type Properties.
In the Type Properties dialog, find the Phase Mapping parameter and click Edit.
In the Phases dialog, select the appropriate mapping options for each phase, and click OK.
Click OK to exit the Type Properties dialog.
(Revit MEP User’s Guide, p. 1287)
This procedure ensures that demolished or existing architectural elements display correctly according to the electrical model’s phase structure. Without this mapping, Revit cannot interpret which linked phase corresponds to the host’s “Existing” or “New Construction” phases, causing certain geometry-like demolished walls-to disappear from view.
Supporting Extracts from Revit for Electrical Design Study Documentation:
Linked Model Type Properties:
“To modify the type properties of a linked model, select the linked model in the drawing area, and click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties).
The Phase Mapping parameter allows you to set up a correspondence between phases in the host model and phases in the linked model.” (Revit MEP 2011 User’s Guide, p. 1305) Phases and Linked Models Concept:
“When you link a Revit model that has more than one phase, phases in the host model automatically map to phases in the linked model. When this initial mapping occurs, Revit maps phases by matching phase names.
You can manually set up a correspondence between phases in the host model and phases in the linked model using the Phase Mapping function.” (Revit MEP 2011 User’s Guide, p. 1282) Phase-Specific Room and Element Display:
“If phase-specific elements in a linked model do not reflect correctly, check phase mapping for the linked model. If automatic mapping does not give the desired result, map phases manually between projects.” (Revit MEP 2011 User’s Guide, p. 710) Conclusion:
Therefore, to fix the issue where demolished walls are missing in a linked architectural model, the electrical designer must perform manual phase mapping between the architectural model and the host electrical model. This is done by selecting the linked file, opening its Type Properties, and editing the Phase Mapping parameter.

NEW QUESTION 43
An electrical designer wants to schedule parameters from generic annotations Which type of schedule must be created?

A Generic Family schedule

A Generic Annotation schedule

A Note Block

D. A Sheet List

NEW QUESTION 44
An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?

A reporting parameter

A global parameter

A project parameter

A family parameter

NEW QUESTION 45
How can an electrical designer see changes from other users without saving their own work to the central model?

Relinquish All Mine

Reload Latest

Manage Worksets

Worksharing Display

In Autodesk Revit, particularly for electrical and MEP design disciplines using a workshared model, the command “Reload Latest” allows a designer to see changes made by other users without saving or publishing their own work to the central model. This tool ensures that while the designer continues to work locally, their environment stays updated with the latest modifications made by colleagues.
According to the Autodesk Revit MEP User Guide (Chapter 54 – Working in a Team), under the section Loading Updates from the Central Model, it states:
“As you work, you can see the changes other team members have made to the project after they have been synchronized with the central model. You can load updates from the central model without publishing your changes to the central model.
In your local file, click Collaborate tab ➤ Synchronize panel ➤ (Reload Latest).” This confirms that the Reload Latest command refreshes your local file with any modifications from the central file that others have synchronized, but it does not send your local changes back. It is a critical feature for coordination in a team environment, especially when multiple designers-such as electrical, mechanical, and structural engineers-are contributing simultaneously to a shared BIM model.
By contrast:
A . Relinquish All Mine only releases ownership of elements but doesn’t update the local model.
C . Manage Worksets is for controlling visibility and editability of worksets.
D . Worksharing Display visually identifies ownership and status but doesn’t refresh model data.
Therefore, when an electrical designer needs to review updates from others (for example, when a lighting layout needs coordination with architectural ceiling adjustments), the proper workflow is to use Reload Latest, ensuring all new information from the central model appears instantly without saving or affecting their current unsaved edits.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 54: Working in a Team, “Loading Updates from the Central Model,” pp. 1332-1333.
Autodesk Revit Structure User’s Guide, Chapter 49: Working in a Team, “Loading Updates from the Central Model,” p. 1230.
Smithsonian Revit Template Guide (2021), Section 6.3.1 How Worksharing Works, confirming synchronization and reloading behavior for shared Revit environments.

NEW QUESTION 46
An electrical designer is working in a workshared project with a team of people. The electrical designer does not want to see the linked architectural model in any of their views. The rest of the team still needs to see the architectural link.
Which process should the electrical designer use?

Manage Links > Select architectural link > Click Unload for me

Manage Links > Select architectural link > Click Remove

Manage Links > Select architectural link > Click Unload

Manage Links > Select architectural link > Click Unload For all users

In Autodesk Revit workshared projects, it is common for teams from multiple disciplines (architecture, structure, MEP) to collaborate using linked Revit models. Sometimes, an electrical designer may wish to hide or unload the linked architectural model only for their local session, without affecting how other team members see it.
Revit provides the “Unload for Me” option specifically for this purpose.
According to the Autodesk Revit MEP User’s Guide (Chapter: Worksharing – Managing Linked Models):
“When working in a shared model environment, you can unload a link temporarily from your local file using the Unload for Me command in the Manage Links dialog. This action affects only your local copy and does not impact other users working on the project. The link remains loaded for all other team members.” This means that using Manage Links → Select the architectural link → Click Unload for Me, the designer can remove the visual presence of the architectural model from all of their views without impacting the rest of the team. The link remains active in the central model, and other disciplines will continue to see it as usual.
Here’s a breakdown of the incorrect options:
B . Remove: Permanently removes the link from the project, affecting all users – not allowed in a team collaboration environment.
C . Unload: Temporarily unloads the link for everyone upon synchronization with the central model.
D . Unload For all users: Explicitly unloads the link globally; all users lose access to the link after the next sync.
Therefore, the correct process for the electrical designer to hide the architectural link only for themselves is:
➡️ Manage Links → Select architectural link → Click “Unload for Me.”
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 55: Worksharing – Managing Links, pp. 1342-1344.
Autodesk Revit 2021 Help, “Unload for Me vs. Unload – Managing Links in Workshared Projects.” Smithsonian Facilities Revit Template User’s Guide (2021), Section 6.3.3 – Worksharing and Link Visibility Controls.

NEW QUESTION 47
An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?

Set the family parameter to Shared.

Add an electrical connector to the family.

Change the Voltage parameter value to non-zero.

Set the distribution system for the family.

NEW QUESTION 48
An electrical designer wants to add a parameter to a lighting fixture schedule without editing the families. Which parameter type should the designer use?

Schedule parameter

Project parameter

Global parameter

Family parameter
