[Jul 25, 2026] New Updated H12-831_V1.0-ENU Exam Questions 2026 [Q225-Q244]

Rate this post

[Jul 25, 2026] New Updated H12-831_V1.0-ENU Exam Questions 2026

Updated Free Huawei H12-831_V1.0-ENU Test Engine Questions with 465 Q&As

Huawei H12-831_V1.0 (HCIP-Datacom-Advanced Routing & Switching Technology V1.0) Exam is a professional-level certification exam offered by Huawei Technologies Co. Ltd. H12-831_V1.0-ENU exam is designed for individuals who possess advanced knowledge and skills in the field of routing and switching technologies. The HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Exam is a comprehensive exam that covers a wide range of topics related to advanced routing and switching technologies, including routing protocols, switching technologies, network security, and network management.

Huawei H12-831_V1.0 (HCIP-Datacom-Advanced Routing & Switching Technology V1.0) Certification Exam is a professional certification exam that is designed for individuals who have experience with routing and switching technologies. H12-831_V1.0-ENU exam covers a wide range of topics and is recognized by many industries as a valuable certification for professionals in the networking industry. If you are interested in pursuing a career in advanced routing and switching technology, the Huawei H12-831_V1.0 Certification Exam is an excellent way to demonstrate your knowledge and skills in this field.

NEW QUESTION 225
In a certain MPLS network, the LSP information of R1 and R2 is shown in the figure. At this time, the administrator enters the command ping 3.3.3.3 on R1. Which of the following descriptions of this scenario is correct?

The Ping message sent by R1 does not carry any label. After receiving it, R2 will forward it based on IP.

The Ping message sent by R1 will carry label 1025. After receiving it, R2 will remove the label and forward it based on IP.

The Ping message sent by R1 will carry label 1025. After receiving it, R2 will perform label exchange and forward it based on MPLS.

The Ping message sent by R1 does not carry any label, but R2 will add a label after receiving it and forward it based on MPLS

NEW QUESTION 226
On a BGP/MPLS IP VPN network, VPNv4 routes carry the export RT. Which of the following attributes is used by MP-BGP to carry the export RT?

Extended_Community

MP_REACH_NLRI

Local_Preference

AS Path

NEW QUESTION 227
In the MPLS network, the administrator deploys end-to-end QoS function at the same time. Then the penultimate hop device in the MPLS network can pop out the MPLS label based on the PHP feature, so that the Egress can process the message based on the QoS priority of the inner message.

True

False

NEW QUESTION 228
What is the meaning of display current-configuration I include vlan command?

View eachVLANphysical interface information bound to the

See what’s currently createdVLAN

CheckVLANIFinterfaceIPaddress

View all included”VLAN”Configuration of keywords

NEW QUESTION 229
On the OSPFv3 network shown in the figure, OSPFv3 is enabled on the interfaces connecting R1, R2, and R3. The router ID of each router is 10.0.X.X, where X is the number of the router. If you check detailed information about an LSA on R3, the command output shows that the LSA is generated by R2 and describes the IPv6 prefix address associated with the Router-LSA.

TRUE

FALSE

NEW QUESTION 230

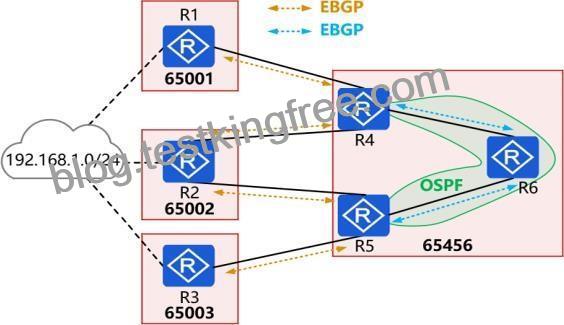

In the network shown in the figure, ASs use directly connected interfaces to establish EBGP neighbor relationships. OSPF is deployed inside AS 65456 (OSPF is not enabled on the interconnection ports between ASs), and R4 and R5 use the Loopback0 interface to establish an IBGP neighbor relationship with R6. The IP address of the Loopback0 interface of each device is
10.0.X.X/32, and the Router ID is 10.0.X.X, where X is the device number. R1, R2, and R3 introduce the external network 192.168.1.0/24 into BGP through import.

Which of the following descriptions are correct by default? (Multiple choice)

For 192.168.1.0/24, R6 prefers the route received from R4

For 192.168.1.0/24, R4 prefers the route received from R1

For 192.168.1.0/24, if R3 is configured with “default local-preference 150”, R5 will prefer the route received from R3.

For 192.168.1.0/24, R5 prefers the route received from R2

NEW QUESTION 231
In an MPLS network that uses LDP to establish LSP, when the directly connected downstream transit node of the ingress node that sends a label request will distribute labels to the ingress only after receiving the label mapping message from the final downstream egress node, which of the following combinations of label publishing mode and label distribution control mode is used at this time?

DU + Ordered

DoD + Independent

DoD + Ordered

DU + Independent

NEW QUESTION 232
When deploying BGPIMPLS IPVPN, when two VPNs have a common site, the common site must not use overlapping address space with other sites of the two VPNs.

True

False

NEW QUESTION 233
The traditional BGP 4 can only manage IPv4 single routing information. In order to provide support for a variety of network layer protocols, MP-BGP extends BGP-4. MP-BGP uses address families to distinguish different network layer protocols. Which of the following address families are currently supported?

BGP-VPNv4address family

BGP-IPV6Unicast address family

BGP-IPV4broadcast address family

BGP-MPexampleIPv6address family

NEW QUESTION 234
What is the value of the linkage between OSPF and BFD?

OSPFofhelloThe sending interval is in seconds, more thanBFDInduction link status is fast

BFDThe message sending interval can reach the millisecond level, which is less thanOSPFInduction link status is slow

Detected at the millisecond levelBFD. associationOSPFstate, fulfilledOSPFThe purpose of quickly sensing the status of the tank

BFDAny change in state will not affectOSPFneighbor state

NEW QUESTION 235

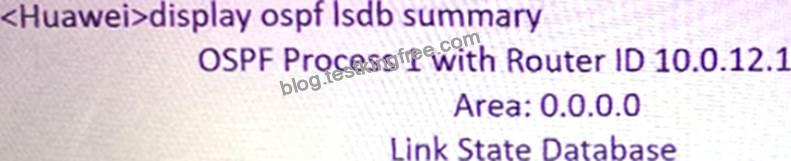

A campus deploys OSPF to implement network interworking. The LSDB of R2 is shown in the figure. From this LSDB. it is possible to What information was obtained?

ArealNone inType3 LSA. maybeR2in the area1In the correct directiontype3 LSAfiltered

Area 1forNSSAarea

R2WillType7 LSAThe default route is converted toType5 LSAdefault route for

R2existOSPFThe default route is delivered in the process

NEW QUESTION 236
Which of the following is not part of the preliminary preparations for the cutover plan?

On-site defense

Cutover target

Introduction to the current network

Risk assessment

NEW QUESTION 237
Part of the configuration of R1 is as follows. Which of the following statement about IS-IS on R1 is correct? (Multiple choice)

The routing information of process 2 and process 3 are isolated

Process 1 only contains global routing information

Process 1 also contains global routing information. And VRF tt, rr routing information

The routing information of process 2 and process 3 will be shared

NEW QUESTION 238
As shown in the figure, the cost value of the link that all interfaces of the router enable DSPF is identified in the figure.

The Loopback D interface of R2 is advertised in area 1. Then the cost value of R1 to 10.2/32 is:

200

150

100

NEW QUESTION 239

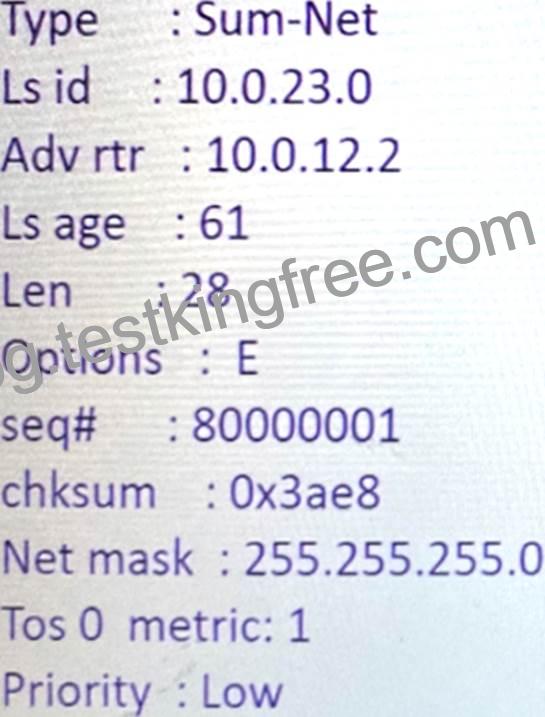

A router is running OSPF, and the output information is as shown in the figure. Which of the following statements is correct?

The type of the LSA is AS-externa1-LSA

The destination network described by this LSA is 10.0.23.0/24

The LSA in the figure is generated by this router

This device is ABR

NEW QUESTION 240
There are multiple types of MAC address entries on a switch. Which of the following entries are manually configured and cannot be aged out?

MUX MAC address entries

Static MAC address entries

Dynamic MAC address entries

Blackhole MAC address entries

NEW QUESTION 241
In an operator’s MPLSVPN network, there are two devices PE1 and PE2 for MPLSVPN data forwarding. PE1 receives a private network route of 172.16.1.0/24 from the client, and converts it to a VPNv4 route on PE1 and assigns a label of 1027 Released to PE2. The outgoing label of the MPLS LSR-ID of PE2 reaching PE1 is 1025o When a client on PE2 accesses 172.16.1.0/24, the frame sent by PE2, the inner and outer labels should be a combination of the following 6 options?

outer layer label:1025:inner label:1027

outer layer label:1027:inner label:1027

Layer Label:1027:inner label:1025

Layer Label,1025:inner label:1025

NEW QUESTION 242
Which of the following statements about LDP label retention-free way is correct? (Multiple choice)

Need more memory and label space

Keep all labels distributed by neighbors

Only keep labels from next-hop neighbors, discard all labels sent by non-next-hop neighbors

Save memory and label space

NEW QUESTION 243
When the administrator uses the static-Isp egress command to configure a static LSP for a device within an MPLS domain, both the incoming label value and the outgoing label value must be specified.

True

False

NEW QUESTION 244
What is the command to adjust the link cost of an IS-IS interface?

isis cost

isis timer hello

isis circuit-level

isis circuit-type
